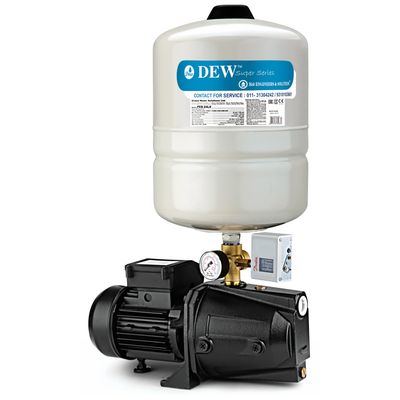

JET SUPER 60 with 24 Ltr. tank (1-4 Bathrooms)

Applications

  • Jet Super 60 24 Ltr. can be used for boosting pressure to improve pressure.
  • It is suitable for 1-4 bathrooms.
  • It comes with a 24 litre pressure tank and a float switch for dry run protection which prevents the motor from functioning when there is lack of water in the tank.

Jet Super Motor Features

  •  C&U bearing.
  • Motor with copper winding.
  • Built-in thermal protector for single phase motor.
  • Insulation class: F.
  • Protection class: IPX4.
  • Max. ambient temperature: +40℃.

Jet Super Pump Features

  • Cast iron pump body and support under special anti-rust treatment.
  • AISI 304 shaft.
  • Max. liquid temperature: +40℃.
  • Max. suction: +9m.

JET SUPER 100 with 24 Ltr. TANK (1-6 Bathrooms)

Applications

  • Jet Super 100 24 Ltr. can be used for boosting pressure to improve pressure.
  • It is suitable for 1-6 bathrooms.
  • It comes with a 24 litre pressure tank and a float switch for dry run protection which prevents the motor from functioning when there is lack of water in the tank.

Jet Super Motor Features

  •  C&U bearing.
  • Motor with copper winding.
  • Built-in thermal protector for single phase motor.
  • Insulation class: F.
  • Protection class: IPX4.
  • Max. ambient temperature: +40℃.

Jet Super Pump Features

  • Cast iron pump body and support under special anti-rust treatment.
  • AISI 304 shaft.
  • Max. liquid temperature: +40℃.
  • Max. suction: +9m.

TECHNICAL DATA

Motor Type

Single Phase

Power Rating

0.6 HP/1 HP

Maximum Pressure

3.8/4.5 Bar

Maximum Discharge

3000/4200 LPH

Insulation

Class F

Pipe Size

25x25 mm

MATERIAL TABLE OF JET SUPER
