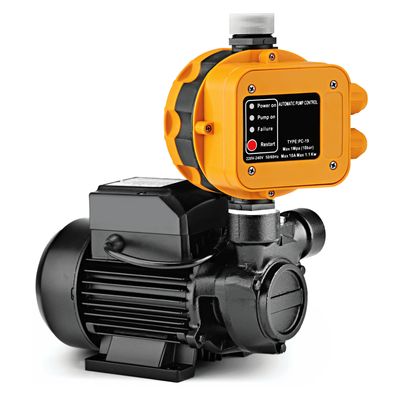

LITTLE MASTER SUPER CONTROL BAR ( 1-2 BATHROOMS)

Applications

Little Master Super Control can be used for boosting pressure to improve flow rate.
It is suitable for 1-2 bathrooms.
It comes with Dry Run Protection which prevents the motor from functioning when there is lack of water in the tank.

Little Master Super Pump Features

Special anti-rust treatment for cast iron pump body and support
Brass impeller
AISI 304 shaft
Max. liquid temperature: +40℃
Max. suction: +8 m

Little Master Super Submersible Motor Features

C&U bearing
Copper winding Built-in thermal protector for single phase motor
Insulation class: F
Protection class: IPX4
Max. ambient temperature: +40℃

LITTLE MASTER SUPER WITH 8 ltr. tank ( 1-2 baTHROOMS)

Application

Little Master Super 8 Ltr. can be used for boosting pressure to improve flow rate.
It is suitable for 1-2 bathrooms.
It comes with a 8 litre pressure tank.

Little Master Super Pump Features

Special anti-rust treatment for cast iron pump body and support
Brass impeller
AISI 304 shaft
Max. liquid temperature: +40℃
Max. suction: +8 m

Little Master Super Submersible Motor Features

C&U bearing
Copper winding Built-in thermal protector for single phase motor
Insulation class: F
Protection class: IPX4
Max. ambient temperature: +40℃

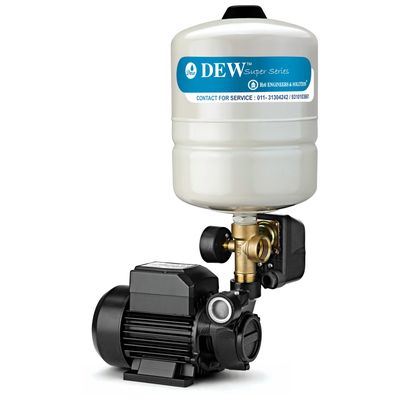

LITTLE MASTER SUPER with 24 ltr. tank ( 1-3 baTHROOMS)

Application

Little Master Super 24 Ltr. can be used for boosting pressure to improve flow rate.
It is suitable for 1-3 bathrooms.
It comes with a 24 litre pressure tank and a float switch for dry run protection which prevents the motor from functioning when there is lack of water in the tank.

Little Master Super Pump Features

Special anti-rust treatment for cast iron pump body and support
Brass impeller
AISI 304 shaft
Max. liquid temperature: +40℃
Max. suction: +8 m

Little Master Super Submersible Motor Features

C&U bearing
Copper winding Built-in thermal protector for single phase motor
Insulation class: F
Protection class: IPX4
Max. ambient temperature: +40℃
